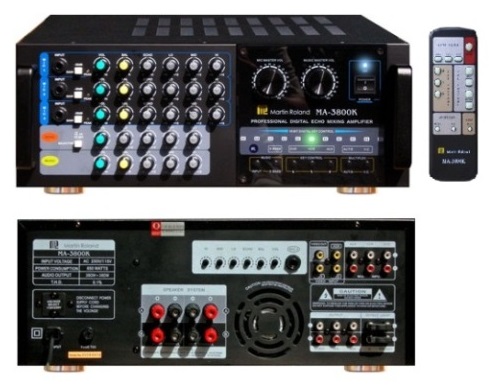

MA-3800K


380W+380W Digital Echo Mixing Karaoke Amplifier

























Package Includes:

  • Remote Control

  • User's Manual


  SPECIFICATION

  • Max. Power Output: 380W + 380W at 4ohms

  • Infrared Remote control Innovative

  • Digital Echo effect Processing

  • 4 microphone Inputs (3 front/1 rear) for Usage

  • Auto-gain Level Indicators

  • Microphone Input Signal Attenuators

  • Microphone Volume/Bass/Midrange/Treble/Balance/Echo Level Adjust Echo

  • Effect Volume/Bass/Treble/Repeat-deepness / Delay-time control

  • Music Volume/Balance/Bass/Midrange/Treble Adjust

  • 11 Steps Digital Key Control

  • 3 Audio sources input Selector

  • EFFECTOR IN/OUT

  • 3 Video Input ,1 Video Output (RCA)

  • Singing Partner/Vocal Cancel function fits to multiplex karaoke media

  • S. Bass switch for musical bass and treble frequency extension

  • Auto Video-In Switching

  • Overload and Short Circuit Protecting

  • Advanced Channel type Heating-blow System

  • AC 110V/220V dual voltage selection

Specification

MA 3000K
Audio Output Max 380 W+ 380W
Mic Input Sensitivity 15mV
External device sensitivity 250mV
Signal / Noise Ratio (with IHF A filter) 90dB
THD (1KHz. Aux 150mV Input) 0.1%
Frequency Response 25Hz ~ 20KHz
Mic Tone Adjustment 80Hz + 15dB,
3.5KHz + 5dB,
12Khz + 15dB
Echo Tone Adjustment 80Hz + 15dB,
12Khz + 15dB
Power Source AC 230V / 50Hz
Electricity consumption 650 W




USER MANUEL (PDF)
